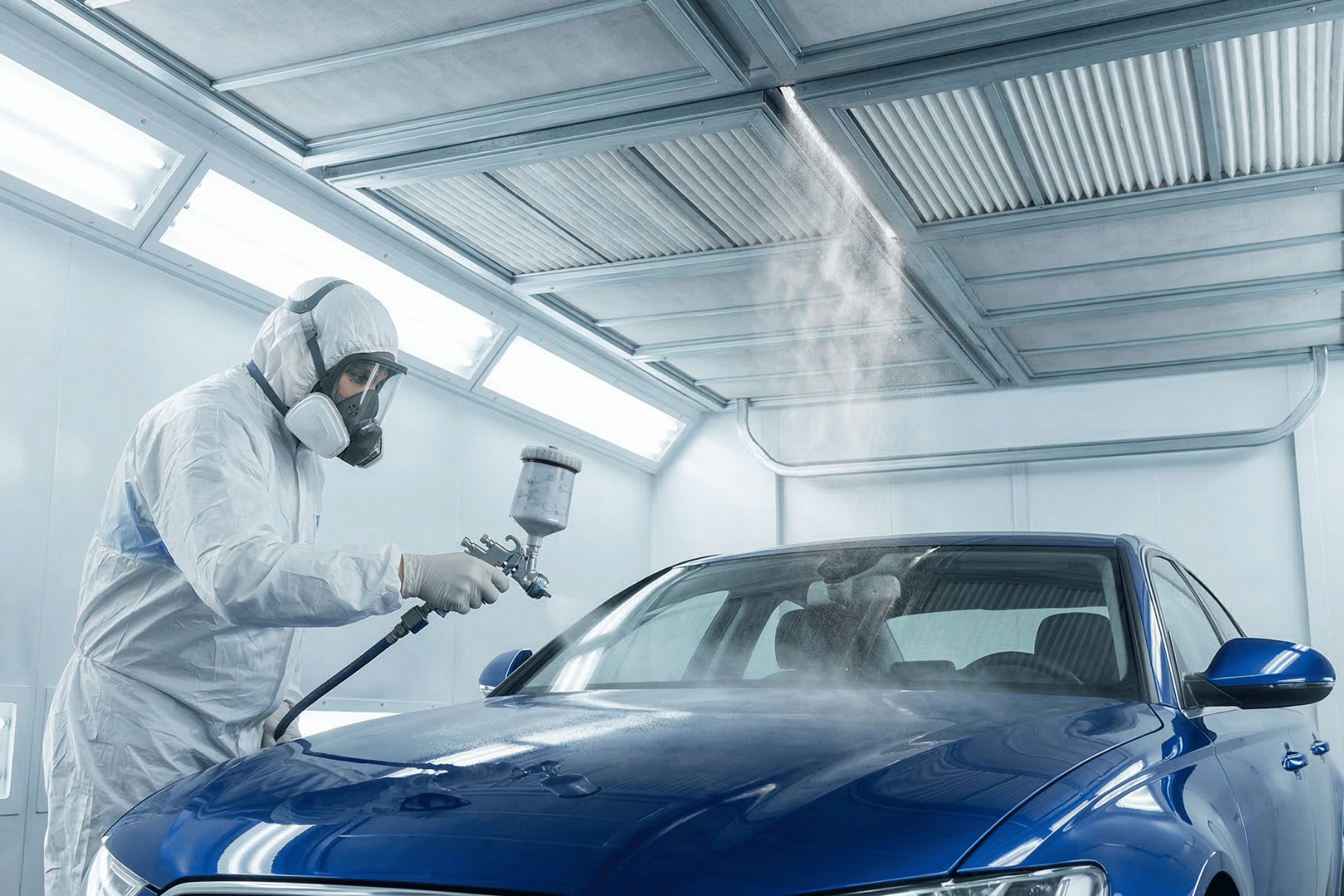

The Hidden Gap: Why Standard Filters Fail Your Spray Booth

A dust nib on a fresh clear coat is the most expensive speck of dirt in your workshop. You checked the intake. You cleaned the floor. You even replaced the ceiling filters yesterday. Yet the contamination remains. The culprit often hides in plain sight at the edges of your filtration frames. This is an air bypass. It is a silent killer of finish quality and the primary reason why standard sized filters often fail in working spray booths.

Air bypass occurs when airflow finds a path around the filter media rather than travelling through it. This physical phenomenon ruins efficiency. You can buy the highest grade diffusion media on the market. You can install expensive intake mats. But if a gap exists between the filter and the holding frame, the rating of that filter becomes irrelevant. The air follows the path of least resistance. It ignores the dense fibreglass you paid for and rushes through the open slot at the edge, carrying 10 micron particles straight onto your wet paint.

What air bypass actually does to your airflow

Fluid dynamics govern how air moves through your booth. Think of your spray booth ceiling like a dam wall. The filters are the controlled spillway. A gap in the frame is a crack in the dam. Because the filter media offers resistance to build pressure, the air naturally seeks the gap where resistance is zero.

This creates two immediate problems for the operator. First, you lose the laminar flow required to carry overspray away from the job. The Australian Standard AS/NZS 4114.1 mandates a specific average airflow velocity, typically around 0.5 metres per second for downdraft booths, to ensure safe removal of contaminants. When air bypasses the filter, velocity drops in the main zone and spikes at the gap. This erratic movement creates turbulence which then  stirs up floor dust and throws overspray back onto the panels you just finished.

Second, the bypass gap acts as a vacuum for contamination. The high velocity air rushing through a 5mm slit creates a venturi effect. It creates suction that can pull dried paint flakes from the plenum chamber and deposit them directly into the cabin. You effectively dust  your own work with debris.

Why off the shelf sizes rarely fit legacy booths

Many operators assume a “600 x 600” filter frame requires a 600 x 600 pad. In a perfect world, this maths works. In an active workshop, it rarely holds true. Spray booths are large metal structures subject to thermal cycles. They heat up during bake cycles and cool down overnight. Over five or ten years, this expansion and contraction shifts the steel framework.

A frame that measured exactly 600mm when the installer tightened the last bolt in 2015 might measure 605mm today. It might have warped slightly out of square. If you purchase a standard sized cardboard box filter or a pre cut pad, you rely on factory tolerances that do not account for your specific equipment wear.

Standard mass produced filters also have their own manufacturing tolerances. A filter marked as 600mm wide might actually arrive as 595mm. When you combine a shrinking filter with a widening frame, you get a gap. That gap guarantees rework. The spray booth installer who built the unit understands this drift, which is why original specifications often call for friction fitting or overlap, yet generic suppliers ignore this necessity to streamline their own stock levels.

This is also why we overcut all our custom sized filters.

The regulatory risk of poor filtration

The cost of air bypass extends beyond the buffing time required to fix a dirty paint job. It hits your compliance obligations. Safe Work Australia highlights in the Spray painting and powder coating Code of Practice that effective ventilation is critical for controlling hazardous chemicals.

When air bypasses your exhaust filters, you release isocyanates and particulate matter directly into the atmosphere or the surrounding workshop. You run the risk of compromising  the safety of your staff. You also risk fines from environmental regulators. EPA Victoria maintains strict guidelines regarding industrial waste and air quality, noting that businesses must take all practicable steps to prevent industrial waste from entering the environment. A leaking filter bank suggests you failed to maintain your control equipment.

This risk profile changes how facility managers must view procurement. Buying the cheapest standard size filter saves twenty dollars on the invoice. But if that filter leaves a gap that breaches emission standards or poisons the workshop air, the liability cost dwarfs the saving.

Custom sizing as the only real solution

The only way to guarantee a seal is to measure the actual aperture and cut the media to fit. This is why AeroFlow Filters focuses on custom sizing rather than forcing a standard catalogue on unique problems. A filter must fit the frame with a friction seal.

You need media that is cut slightly larger than the opening. This creates a compression fit when you install it. The media pushes back against the frame, closing every potential gap. If your frame measures 598mm, you need a 605mm pad to ensure tight edges. Standard sizes remove this control. They force you to use tape or caulk to seal gaps, which wastes labour hours and rarely lasts through a full bake cycle.

Operators often fear custom sizing means long lead times. They picture a factory overseas making a special run that takes six weeks to arrive. We build differently. Because we process bulk rolls in Sydney, we cut to size immediately. We turn “custom” orders around with the same speed others ship standard boxes. You get the specific dimensions your booth requires without the downtime penalty.

Stopping the cycle of rework

You know the feeling of walking into the booth the next morning. You look at the bonnet you sprayed late yesterday. You see the dust. You know you have lost three hours of labour to sanding and polishing. You might even have to respray the panel entirely.

This cycle kills profitability in the collision repair industry. Margins are tight. Insurance companies do not pay for rework. Every minute you spend fixing a defect caused by air bypass is a minute you cannot sell.

Check your current filter fitment. Turn on the booth lights and look at the ceiling frames. If you see light bleeding through the edges of your filters, you have an air bypass. Likewise, if you see dark stains on the metalwork right next to the filter pad, you also will have an air bypass.

Do not accept “close enough” sizing. The physics of airflow does not forgive small gaps. Measure your frames. Order the size that actually fits. Seal the airflow path to ensure the air travels through the tackified media designed to catch the dust.

The bottom line

Air bypass turns a high performance spray booth into a dirty wind tunnel. It undermines your skills, your profitability and threatens your compliance with Australian safety standards. The solution is not more expensive paint or better spray guns. The solution is a filter that actually fits the frame. By moving to custom sized filtration media, you close the gap, stabilise your cabin pressure, and keep the dirt in the filter where it belongs.
